Click to enlarge · 6 imagesItem A3670
FB SERIES NEW OVEN, CABINET TYPE, NEW
Size I.D.24"W x 24"L x 24"H
Max temp1200 F
Electrics208,240 OR 480 VOLTS, 18 KW, 3 PHASE
F.O.B.FACTORY LOACTION
Interested in item A3670?
Request a price quotation and photos, or call John Bouley directly. Your inspection is invited and suggested.
Finance this equipment with low monthly payments. Apply with Direct Capital →
Specifications
| Manufacturer | FB SERIES NEW |
|---|---|
| Type | OVEN, CABINET TYPE, NEW |
| SIZE I.D. | 24"W x 24"L x 24"H |
| SIZE O.D. | 62"W x 43"L x 68"H |
| Model | FB-HT222-1200 |
| Maximum Temp. | 1200 F |
| Electrics | 208,240 OR 480 VOLTS, 18 KW, 3 PHASE |

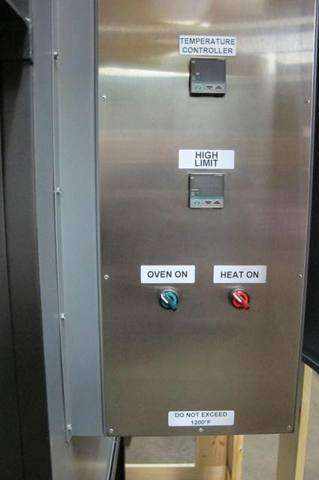

| Controls | WATLOW PM6 SINGLE SET POINT DIGITAL TEMPERATURE CONTROLLER AND WATLOW PM HI-LIMIT TEMPERATURE CONTROL INSTRUMENT AND DIGITAL TIMER, SHUTS HEAT OFF AT END OF TIMED CYCLE, ALL MOUNTED IN UL-LISTED CONTROL PANEL ON SIDE OF OVEN. |

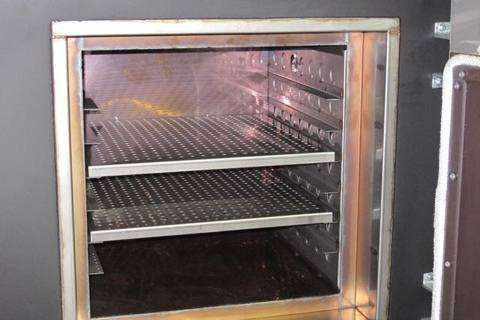

| General | SINGLE SIDE SWING DOOR WITH PRESSURE TYPE LATCHES. HEATING ELEMENTS AND THE 1200 CFM 3/4 HP BELT DRIVEN CIRCULATING FAN ARE MOUNTED ABOVE THE WORK AREA IN A SEPARATE PLENUM. HEATED AIR IS CIRCULATED HORIZONTALLY IN THE WORK CHAMBER. AN AIRFLOW SWITCH MONITORS THE CIRCULATED AIR AND WOULD TERMINATE POWER TO HEATING ELEMENTS IN THE EVENT OF FAN FAILURE. OVEN INTERIOR IS STAINLESS STEEL. EXTERIOR IS PAINTED MACHINE GRAY. THE FACE OF THE OVEN IS PAINTED HIGH TEMPERATURE BLACK. OPTIONS: 20"H STAND WITH LEVELING LEGS..$400.00 SHELVES WITH ADJUSTABLE SHELF BRACKETS...$150 EA PARTLOW MRC5000 SINGLE PEN CHART RECORDER...$2,100 YOKJOGAWA UP55A PROGRAMMABLE CONTROL WITH CORD...$1,800 DOOR SWITCH...$350 |
| F.O.B. | FACTORY LOACTION |
| Weight | 1250 LBS. |
| Terms | 50% WITH PURCHASE ORDER, 50% 5 DAYS PRIOR TO SHIPPING. CANCELLATIONS WILL NOT BE AGREED TO EXCEPT ON TERMS THAT WILL INDEMNIFY US AGAINST ANY LOSS. |
Spec sheet: JB 04/01/2024
NOTICE: DISCLAIMER OF EXPRESS AND IMPLIED WARRANTIES: The information above is deemed reliable but not certified. The above consists of used goods and are sold "AS IS", without express warranties by Seller or implied warranties of any nature whatsoever, including but not limited to merchantability and/or fitness for a particular purpose. Any inspections of the goods made by Seller have not been made for the purpose of providing representations as to quality and safety. Due to the nature of the goods offered, Buyer is encouraged to make a thorough inspection prior to the time of transfer, and to consult the individual manufacturer and manufacturer's guides as to operating instructions for the goods.
