Click to enlarge · 2 imagesItem A5003

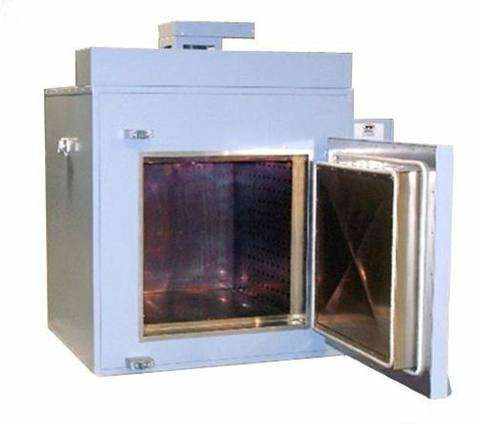

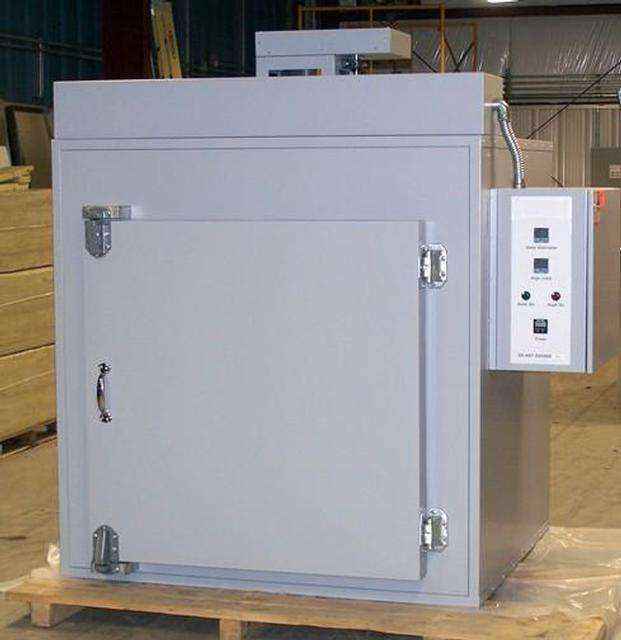

FB SERIES SOLVENT RATED CABINET OVEN
Size I.D.36"W x 24"L x 36"H
Max temp1200 F
Electrics208-240 OR 480 VOLTS, 24 KW, 3 PHASE
F.O.B.FACTORY LOCATION
Interested in item A5003?
Request a price quotation and photos, or call John Bouley directly. Your inspection is invited and suggested.
Finance this equipment with low monthly payments. Apply with Direct Capital →
Specifications
| Manufacturer | FB SERIES, NEW SOLVENT RATED OVEN |
|---|---|
| Type | SOLVENT RATED CABINET OVEN |
| SIZE I.D. | 36"W x 24"L x 36"H |
| SIZE O.D. | 75"W x 58"L x 89"H |
| Model | FB-HT323-1200 |
| Maximum Temp. | 1200 F |
| Electrics | 208-240 OR 480 VOLTS, 24 KW, 3 PHASE |
| Controls | SINGLE SET POINT DIGITAL TEMPERATURE CONTROLLER, DIGITAL OVERTEMPERATURE CONTROL INSTRUMENT AND PURGE TIMER MOUNTED IN AN ENCLOSURE ON SIDE OF THE OVEN |
| General | SINGLE SIDE SWING DOOR WITH PRESSURE TYPE LATCHES. HEATING ELEMENTS AND BELT DRIVEN CIRCULATING FAN (700 CFM) ARE MOUNTED ABOVE WORK AREA IN A SEPARATE CHAMBER. HEATED AIR IS CIRCULATED HORIZONTALLY. AIRFLOW SWITCH MONITORS CIRCULATED AIR AND POWERED EXHAUST (140 CFM) WILL TERMINATE POWER TO HEATING ELEMENTS IN THE EVENT OF FAN FAILURE.INTERIOR IS 304 STAINLESS STEEL, CARBON STEEL EXTERIOR PAINTED GRAY. WALLS ARE 8” THICK. SOLVENT RATING OF .030 GALLONS PER BATCH OPTIONS: 18" OVEN STAND W/MACHINE LEVELER LEGS, SHELVES W/BRACKETS 100 LB OR 250 LBS CAPACITY, CHART OR DIGITAL RECORDERS QUOTE ON REQUEST. |
| F.O.B. | FACTORY LOCATION |
| Weight | 2500 LBS |
| Terms | 50% WITH PURCHASE ORDER, 50% 5 DAYS PRIOR TO SHIPPING. CANCELLATIONS WILL NOT BE AGREED TO EXCEPT ON TERMS THAT WILL INDEMNIFY US AGAINST ANY LOSS. |
Spec sheet: JB 07/08/2024
