FB SERIES OVEN, CABINET TYPE (NEW)

Name: FB Series FB-ST333A1d-500 Cabinet Type Oven (A5022)
Brand: FB Series
SKU: A5022
Availability: InStock

New equipmentCabinet Ovens

Size I.D.36"W x 36"L x 36"H

Max temp500 F

Electrics208-240 OR 480 VOLTS, 18 KW, 3 PHASE

F.O.B.FACTORY LOCATION

Interested in item A5022?

Request a price quotation and photos, or call John Bouley directly. Your inspection is invited and suggested.

Request a quote Call (860) 875-3712 Email about this item

Finance this equipment with low monthly payments. Apply with Direct Capital →

Specifications

Manufacturer	FB SERIES, NEW CLASS A SOLVENT RATED OVEN
Type	OVEN, CABINET TYPE (NEW)
SIZE I.D.	36"W x 36"L x 36"H
SIZE O.D.	65"W x 48"L x 64"H
Model	FB-ST333A1d-500
Maximum Temp.	500 F
Electrics	208-240 OR 480 VOLTS, 18 KW, 3 PHASE

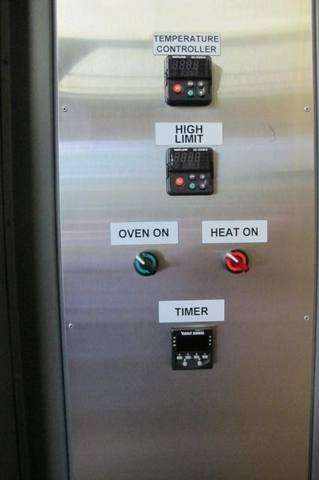

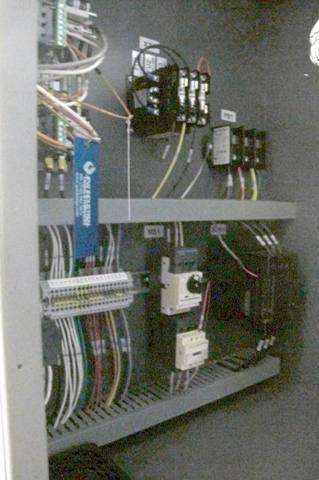

Controls	WATLOW PM6C DIGITAL TEMPERATURE CONTROLLER, WATLOW PM6L HIGH LIMIT CONTROLLER AND EAGLE PROCESS TIMER TO SHUT OFF HEAT AT END OF TIMED CYCLE IN A NEMA 1 AND UL RATED CONTROL PANEL MOUNTED ON RIGHT HAND SIDE OF THE OVEN.

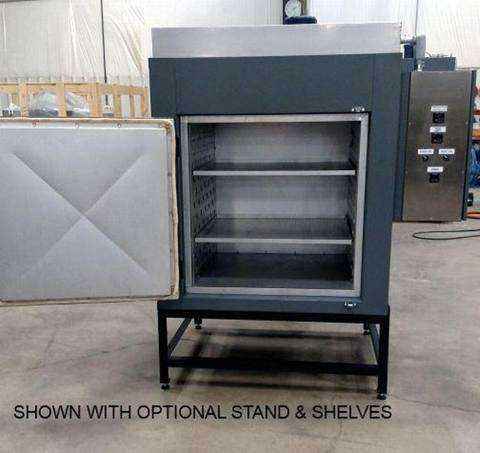

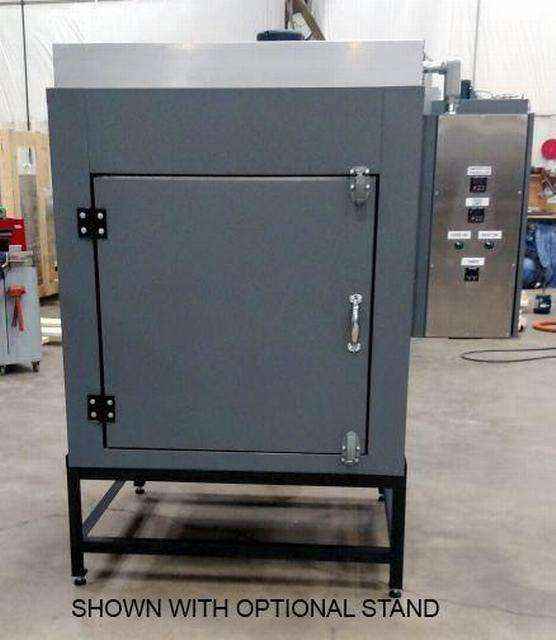

General	NEW CLASS A SOLVENT RATED OVEN WITH SINGLE SIDE SWING DOOR AND PRESSURE TYPE LATCHES. HEATING ELEMENTS AND 1200 CFM CIRCULATING FAN ARE MOUNTED ABOVE THE WORK AREA IN A SEPARATE CHAMBER. HEATED AIR IS CIRCULATED HORIZONTALLY IN WORK CHAMBER. AIR SAFETY SWITCHES MONITORING BOTH CIRCULATING AIR AND POWER EXHAUST WILL TERMINATE POWER TO THE HEATING ELEMENTS IN THE EVENT OF FAN FAILURE. THE OVEN INTERIOR IS ALUMINIZED STEEL. EXTERIOR IS PAINTED MACHINE GRAY. OVEN UNIFORMITY BETTER THAN +-10F ALL TEMPERATURES. OPTIONS: SHELVES AND SHELF BRACKETS 100 LB CAPACITY………$135.00 EA 20" OVEN STAND WITH LEVELING LEGS………………………………$500.00
F.O.B.	FACTORY LOCATION
Weight	APPROX. 1500 LBS
Terms	CHECK WITH PURCHASE ORDER, SUBJECT TO PRIOR SALE. YOUR INSPECTION IS INVITED AND SUGGESTED. CANCELLATIONS WILL NOT BE AGREED TO EXCEPT ON TERMS THAT WILL INDEMNIFY US AGAINST ANY LOSS.

Spec sheet: JB 06/23/2026
