Click to enlarge · 2 imagesItem A3383

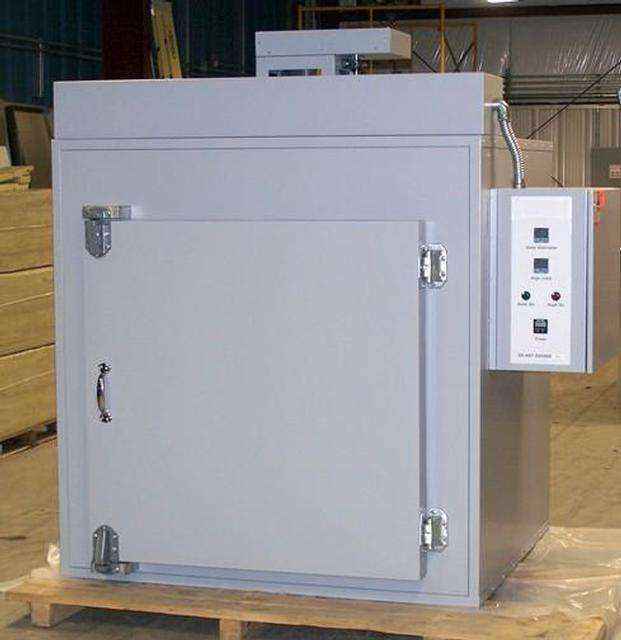

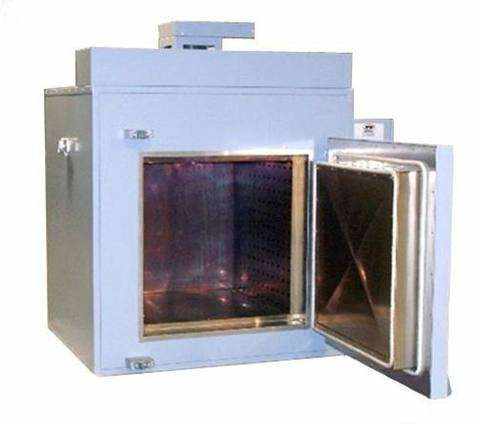

FB SERIES OVEN, CABINET TYPE
Size I.D.36"W x 36"L x 36"H
Max temp1200 F
Electrics208-240 OR 480 VOLTS, 30 KW, 3 PHASE
F.O.B.FACTORY LOCATION
Interested in item A3383?
Request a price quotation and photos, or call John Bouley directly. Your inspection is invited and suggested.
Finance this equipment with low monthly payments. Apply with Direct Capital →
Specifications
| Manufacturer | FB SERIES, NEW OVEN |
|---|---|
| Type | OVEN, CABINET TYPE |
| SIZE I.D. | 36"W x 36"L x 36"H |
| SIZE O.D. | 75"W x 58"L x 84"H |
| Model | FB-HT333-1200 |
| Maximum Temp. | 1200 F |
| Electrics | 208-240 OR 480 VOLTS, 30 KW, 3 PHASE |
| Controls | SINGLE SET POINT DIGITAL TEMPERATURE CONTROLLER, DIGITAL OVERTEMPERAURE CONTROL INSTRUMENT AND PROCESS TIMER MOUNTED IN AN ENCLOSURE ON THE SIDE OF OVEN |
| General | SINGLE SIDE SWING DOOR WITH PRESSURE TYPE LATCHES. HEATING ELEMENTS AND THE BELT DRIVEN CIRCULATING FAN ARE MOUNTED ABOVE THE WORK AREA IN A SEPARATE AREA. HEATED AIR IS CIRCULATED HORIZONTALLY IN THE WORK CHAMBER. AN AIRFLOW SWITCH MONITORS THE CIRCULATED AIR AND WOULD TERMINATE POWER TO THE HEATING ELEMENTS IN THE EVENT OF FAN FAILURE. OVEN INTERIOR IS 304 STAINLESS STEEL, EXTERIOR IS PAINTED GRAY. WALLS ARE 8” THICK. OPTIONS: 18" OVEN STAND W/MACHINE LEVELER LEGS, SHELVES W/BRACKETS 100 LB OR 250 LBS CAPACITY, CHART OR DIGITAL RECORDERS QUOTE ON REQUEST. |
| F.O.B. | FACTORY LOCATION |
| Weight | 2500 LBS |
| Terms | 50% WITH PURCHASE ORDER, 50% 5 DAYS PRIOR TO SHIPPING. CANCELLATIONS WILL NOT BE AGREED TO EXCEPT ON TERMS THAT WILL INDEMNIFY US AGAINST ANY LOSS. |
Spec sheet: JB 08/11/2025
NOTICE: DISCLAIMER OF EXPRESS AND IMPLIED WARRANTIES: The information above is deemed reliable but not certified. The above consists of used goods and are sold "AS IS", without express warranties by Seller or implied warranties of any nature whatsoever, including but not limited to merchantability and/or fitness for a particular purpose. Any inspections of the goods made by Seller have not been made for the purpose of providing representations as to quality and safety. Due to the nature of the goods offered, Buyer is encouraged to make a thorough inspection prior to the time of transfer, and to consult the individual manufacturer and manufacturer's guides as to operating instructions for the goods.
