Click to enlarge · 2 imagesItem A3198
FB SERIES OVEN, CABINET TYPE (NEW)
New equipmentCabinet Ovens
Size I.D.48"W x 48"L x 72"H
Max temp650 F
Electrics208-240 OR 480 VOLTS, 30 KW, 3 PHASE
F.O.B.FACTORY LOCATION
Interested in item A3198?
Request a price quotation and photos, or call John Bouley directly. Your inspection is invited and suggested.
Finance this equipment with low monthly payments. Apply with Direct Capital →
Specifications
| Manufacturer | FB SERIES, NEW OVEN |
|---|---|
| Type | OVEN, CABINET TYPE (NEW) |
| SIZE I.D. | 48"W x 48"L x 72"H |
| SIZE O.D. | 79"W x 59"L x 105"H |
| Model | FB-ST496HD-650 |
| Maximum Temp. | 650 F |
| Electrics | 208-240 OR 480 VOLTS, 30 KW, 3 PHASE |
| Controls | DIGITAL SINGLE SET POINT TEMPERATURE CONTROLLER, DIGITAL HI-LIMIT CONTROL INSTRUMENT, BATCH TIMER THAT SHUTS HEAT OFF AT END OF TIMED CYCLE ALL MOUNTED IN A NEMA 1 & UL RATED CONTROL PANEL ON RIGHT SIDE OF OVEN. |

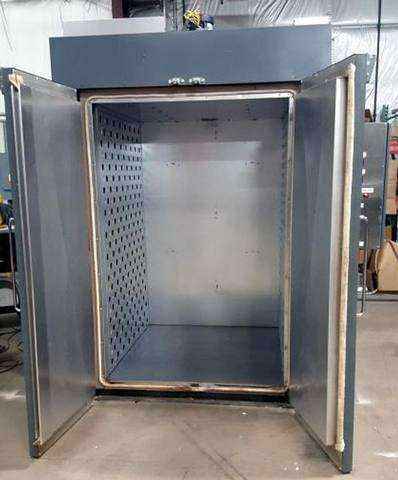

| General | DOUBLE DOOR OPENING WITH PRESSURE TYPE LATCHES. HEAT IS SUPPLIED BY TUBULAR TYPE HEATING ELEMENTS MOUNTED ABOVE WORK AREA IN A SEPARATE CHAMBER ALONG WITH CIRCULATING FAN. HEATED AIR IS CIRCULATED HORIZONTALLY BY A 3500 CFM FAN WITH DIRECT DRIVE 1.5 HP TEFC MOTOR. OVEN HAS 4.5" WALLS AND FLOOR WITH 8# DENSITY INSULATION. OVEN INTERIOR IS ALUMINIZED STEEL, EXTERIOR STEEL IS PAINTED SLATE GRAY. COMBINATION AIR FLOW CAN BE QUOTED UPON REQUEST. PRIOR TO ACCEPTING THE ORDER FACTORY WILL NEED TO KNOW OPERATING TEMPERATURE, TEMPERATURE UNIFORMITY REQUIRED AND IF THERE WILL BE ANY SOLVENTS IN OVEN. PRIOR TO ORDERING FACTORY WILL NEED TO KNOW OPERATING TEMPERATURE, TEMPERATURE UNIFORMITY REQUIRED & IF ANY SOLVENT WILL BE IN THE OVEN. AVAILABLE OPTIONS: SHELVING, DISCONNECT BOX, POWERED EXHAUST, TEMPERATURE RECORDER. |
| F.O.B. | FACTORY LOCATION |
| Terms | 50% WITH PURCHASE ORDER, 50% 5 DAYS PRIOR TO SHIPPING. CANCELLATIONS WILL NOT BE AGREED TO EXCEPT ON TERMS THAT WILL INDEMNIFY US AGAINST ANY LOSS. |
Spec sheet: JB 05/26/2026
