Click to enlarge · 2 imagesItem A3191

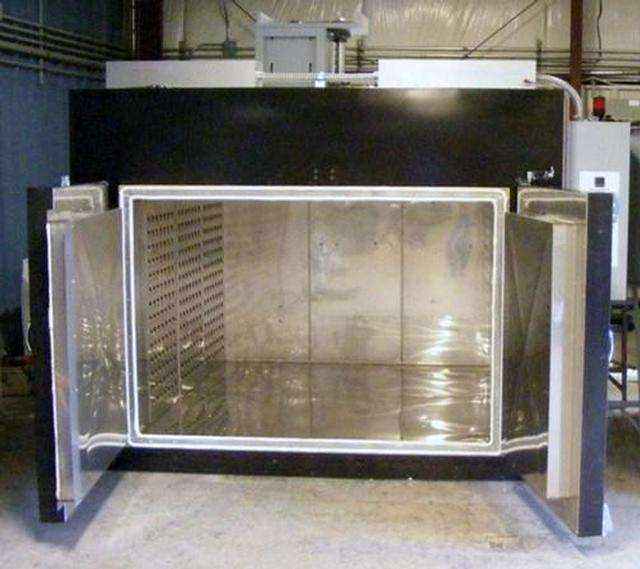

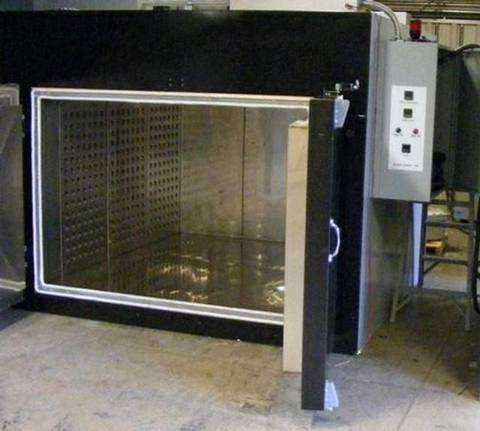

FB SERIES OVEN, CABINET TYPE, NEW OVEN
Size I.D.72"W x 72"L x 48"H
Max temp1200 F
Electrics240 OR 480 VOLTS, 100 KW, 3 PHASE
F.O.B.FACTORY LOCATION
Interested in item A3191?
Request a price quotation and photos, or call John Bouley directly. Your inspection is invited and suggested.
Finance this equipment with low monthly payments. Apply with Direct Capital →
Specifications
| Manufacturer | FB SERIES, NEW OVEN |
|---|---|
| Type | OVEN, CABINET TYPE, NEW OVEN |
| SIZE I.D. | 72"W x 72"L x 48"H |
| SIZE O.D. | 112"W x 93"L x 103"H |
| Model | FB-HT646-1200 |
| Maximum Temp. | 1200 F |
| Electrics | 240 OR 480 VOLTS, 100 KW, 3 PHASE |
| Controls | SINGLE SETPOINT DIGITAL TEMPERATURE CONTROLLER, DIGITAL HIGH LIMIT CONTROL AND TIMER TO SIGNAL END OF CYCLE MOUNTED IN A NEMA 1 AND UL RATED CONTROL PANEL ON RIGHT HAND SIDE OF THE OVEN |
| General | DOUBLE DOOR OPENING WITH SLAM LATCHES. HEAT IS SUPPLIED BY (20) 5000 WATT HEATERS. AIRFLOW IS CIRCULATED FROM BOTH SIDE WALLS TO THE ROOF BY A 30"DIA. 9000 CFM, 5 HP FAN. POWER TO HEATING ELEMENTS IS THROUGH SCR CONTROL. OVEN INTERIOR IS TYPE 304 STAINLESS STEEL WITH REINFORCED FLOOR TO HANDLE A 3000 LBS LOAD. EXTERIOR IS HEAVY GAUGE CARBON STEEL PAINTED SLATE GRAY (FRONT PAINTED HIGH TEMPERATURE BLACK). 8" THICK INSULATED WALLS, CEILING AND FLOOR. DESIGNED TO PASS A 9 POINT SURVEY +- 10 F IN 80% OF THE EMPTY CHAMBER. A VERTICAL LIFT DOOR CAN BE INSTALLED FOR AN ADDITIONAL $15,000. |
| F.O.B. | FACTORY LOCATION |
| Terms | 50% WITH PURCHASE ORDER, 50% 5 DAYS PRIOR TO SHIPPING. CANCELLATIONS WILL NOT BE AGREED TO EXCEPT ON TERMS THAT WILL INDEMNIFY US AGAINST ANY LOSS. |
Spec sheet: JB 01/27/2025
