Click to enlarge · 3 imagesItem A3167

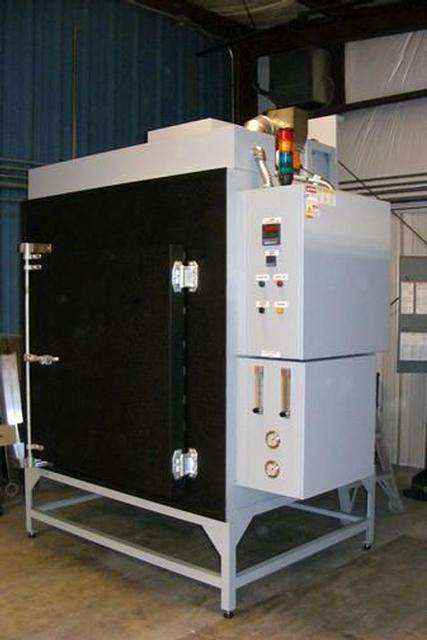

FB SERIES INERT GAS CABINET OVEN (NEW)
Size I.D.36"W x 36"L x 36"H
Max temp1200 F
Electrics480 VOLTS, 30 KW, 3 PHASE
F.O.B.FACTORY LOCATION
Interested in item A3167?
Request a price quotation and photos, or call John Bouley directly. Your inspection is invited and suggested.
Finance this equipment with low monthly payments. Apply with Direct Capital →
Specifications
| Manufacturer | FB SERIES, INERT GAS, NEW OVEN |
|---|---|
| Type | INERT GAS CABINET OVEN (NEW) |
| SIZE I.D. | 36"W x 36"L x 36"H |
| SIZE O.D. | 74"W x 55"L x 80"H |
| Model | FB-HT333-1200 |
| Maximum Temp. | 1200 F |
| Electrics | 480 VOLTS, 30 KW, 3 PHASE |
| Controls | YOKOGAWA UT55A PROGRAMMABLE TEMPERATURE CONTROLLER AND HIGH LIMIT IN A NEMA 1 UL LISTED CONTROL PANEL MOUNTED ON RIGHT HAND SIDE OF THE CHAMBER |

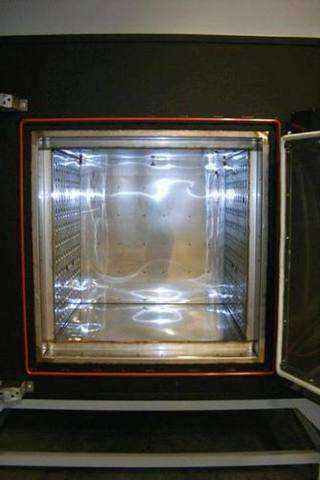

| General | SINGLE SIDE SWING DOOR HELD CLOSED BY POSITIVE CAM LATCHING SYSTEM. STAINLESS STEEL INTERIOR FULLY WELDED AND SEALED TO MINIMIZE GAS LEAKAGE WITH HEAVY GAUGE CARBON STEEL EXTERIOR PAINTED SLATE GRAY. 8" THICK INSULATED WALLS, CEILING AND FLOOR. HEAT IS SUPPLIED BY (12) 2500 WATT INCOLOY SHEATHED HEATING ELEMENTS HOUSED IN A PLENUM. HEATED AIR IS CIRCULATED HORIZONTALLY (RIGHT TO LEFT) BY A 3/4 HP 1200 CFM 18" DIA FAN. OVEN WILL BE SET UP FOR INERT ATMOSPHERE AND EQUIPPED WITH SOLENOID VALVE, REGULATOR, PRESSURE GAUGE AND DELIVERY PORT. PRESSURE RELIEF VALVE IS INSTALLED IN CASE CHAMBER EXCEEDS DESIRED LIMIT. OVEN HAS AN AIR JACKET AROUND THE INNER LINER WITH INTAKE DAMPER AND FORCED EXHAUST THAT WILL TURN ON DURING COOL DOWN CYCLE. DAMPERS ARE MOTORIZED AND ARE OPENED DURING COOLING CYCLE & CLOSED DURING HEATING CYCLE. |
| F.O.B. | FACTORY LOCATION |
| Weight | 2300 LBS. |
| Terms | 50% WITH PURCHASE ORDER, 50% 5 DAYS PRIOR TO SHIPPING. CANCELLATIONS WILL NOT BE AGREED TO EXCEPT ON TERMS THAT WILL INDEMNIFY US AGAINST ANY LOSS. |
Spec sheet: JB 04/03/2025
