Click to enlarge · 4 imagesItem A3158

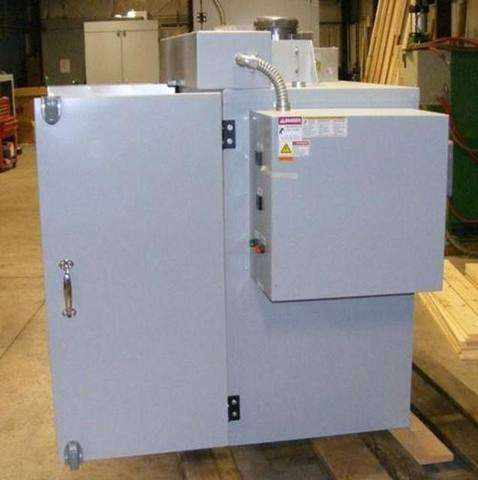

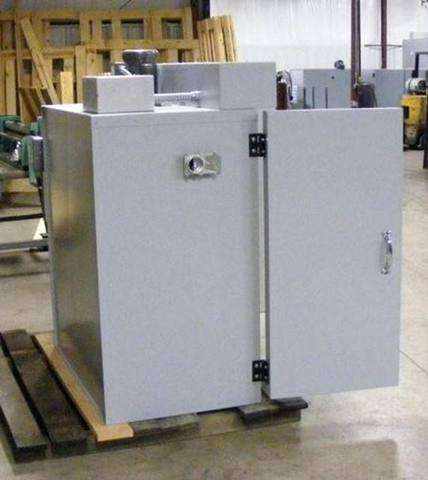

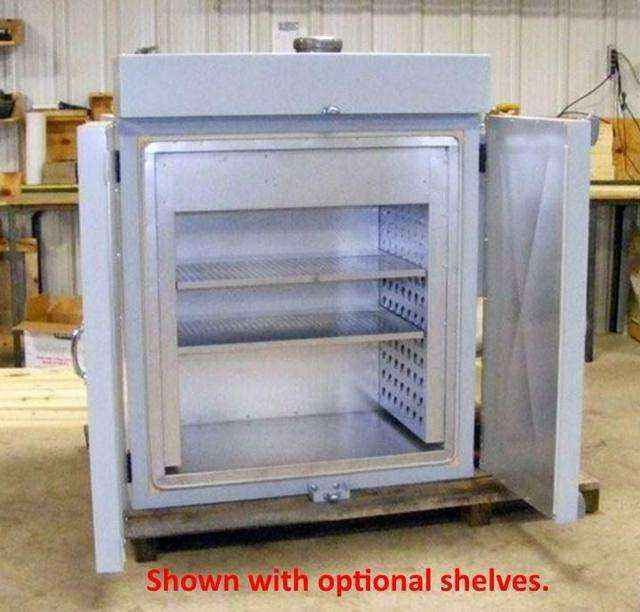

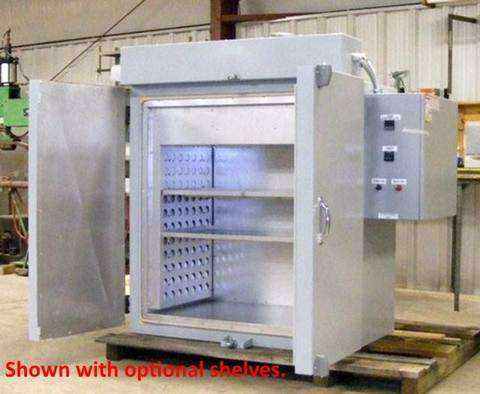

FB SERIES CABINET OVEN (NEW)
New equipmentCabinet Ovens
Size I.D.36"W x 24"L x 36"H
Max temp650 F
Electrics208-240 OR 480 VOLTS, 9 KW, 3 PHASE
F.O.B.FACTORY LOCATION
Interested in item A3158?
Request a price quotation and photos, or call John Bouley directly. Your inspection is invited and suggested.
Finance this equipment with low monthly payments. Apply with Direct Capital →
Specifications
| Manufacturer | FB SERIES, NEW OVEN |
|---|---|
| Type | CABINET OVEN (NEW) |
| SIZE I.D. | 36"W x 24"L x 36"H |
| SIZE O.D. | 65"W x 34"L x 63"H |
| Model | FB-ST323A-650 |
| Maximum Temp. | 650 F |
| Electrics | 208-240 OR 480 VOLTS, 9 KW, 3 PHASE |
| Controls | DIGITAL SINGLE SETPOINT TEMPERATURE CONTROLLER, DIGITAL HI LIMIT CONTROLLER AND PROCESS TIMER TO SHUT OFF THE HEAT AT THE END OF CYCLE MOUNTED IN A NEMA 1 AND UL RATED CONTROL PANEL MOUNTED ON THE RIGHT HAND SIDE OF THE OVEN. |
| General | DOUBLE DOOR OPENING WITH PRESSURE TYPE LATCHES. ALUMINIZED STEEL INTERIOR AND HEAVY GAUGE CARBON STEEL EXTERIOR PAINTED SLATE GRAY.4.5"THICK INSULATED WALLS, CEILING AND FLOOR.HEAT IS SUPPLIED BY (6) 1500 WATT HEATERS IN A TOP PLENUM.HEATED AIR IS CIRCULATED HORIZONTALLY RIGHT TO LEFT BY A 3/4 HP 1200 CFM FAN. OPTIONS: ADJUSTABLE PERFORATED SHELVES & BRCKETS $135.00 EA. OVEN STAND WITH LEG LEVELING SCREWS $400.00 CHART RECORDERS QUOTED ON REQUEST. |
| F.O.B. | FACTORY LOCATION |
| Terms | 50% WITH PURCHASE ORDER, 50% 5 DAYS PRIOR TO SHIPPING. CANCELLATIONS WILL NOT BE AGREED TO EXCEPT ON TERMS THAT WILL INDEMNIFY US AGAINST ANY LOSS. |
Spec sheet: JB 06/04/2025
