Click to enlarge · 2 imagesItem A2933

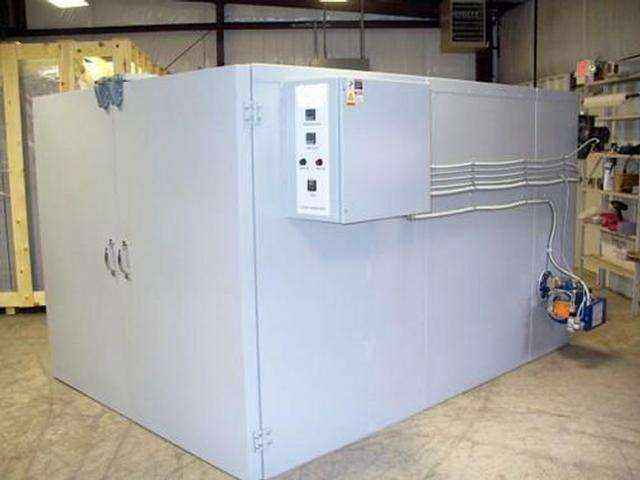

FB SERIES OVEN, WALK IN
New equipmentWalk-In Ovens
Size I.D.72"W x 96"L x 72"H
Max temp500 F
Electrics208, 240 OR 480 VOLT, 3 PHASE VOLTS, KW, 3 PHASE
F.O.B.FACTORY LOCATION
Interested in item A2933?
Request a price quotation and photos, or call John Bouley directly. Your inspection is invited and suggested.
Finance this equipment with low monthly payments. Apply with Direct Capital →
Specifications
| Manufacturer | FB SERIES, GAS FIRED, NEW OVEN |
|---|---|
| Type | OVEN, WALK IN |
| SIZE I.D. | 72"W x 96"L x 72"H |
| SIZE O.D. | 105"W x 145"L x 82"H |
| Model | FB-ST668G |
| Maximum Temp. | 500 F |
| Electrics | 208, 240 OR 480 VOLT, 3 PHASE VOLTS, KW, 3 PHASE |
| Controls | WATLOW PM SINGLE SET POINT DIGITAL CONTROLLER, WATLOW PM DIGITAL HI-LIMIT CONTROLLER AND EAGLE BATCH PROCESS TIMER TO SHUT HEAT OFF AT THE END OF TIMED CYCLE MOUNTED IN A NEMA 1 UL RATED PANEL ON RIGHT SIDE OF THE OVEN. |

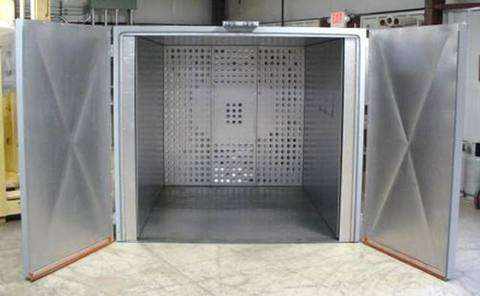

| General | DOUBLE DOOR OPENING WITH PRESSURE TYPE LATCHES. HEAT IS SUPPLIED BY MAXON 500,000 BTU BURNER FIRING INTO A PROTECTED CHAMBER IN THE REAR OF THE OVEN. HEATED AIR IS CIRCULATED HORIZONTALLY FRONT TO BACK BY A 30” DIA FAN DRIVEN BY A 5 HP MOTOR. OVEN IS EQUIPPED WITH A 600 CFM POWERED EXHAUSTER. OVEN WALLS ARE 4.5” THICK AND INSULATED WITH 8# DENSITY INSULATION. INTERIOR OF THE OVEN IS ALUMINIZED STEEL. EXTERIOR IS CR STEEL, PAINTED MACHINE GRAY. STEEL PLATE FLOOR IS STANDARD. OPTIONS: RACKS AND CARTS, HANGING BRACKETS, DISCONNECT BOX, |
| F.O.B. | FACTORY LOCATION |
| Terms | 50% WITH PURCHASE ORDER, 50% 5 DAYS PRIOR TO SHIPPING. CANCELLATIONS WILL NOT BE AGREED TO EXCEPT ON TERMS THAT WILL INDEMNIFY US AGAINST ANY LOSS. |
Spec sheet: JB 05/22/2026
