Click to enlarge · 4 imagesItem A3718

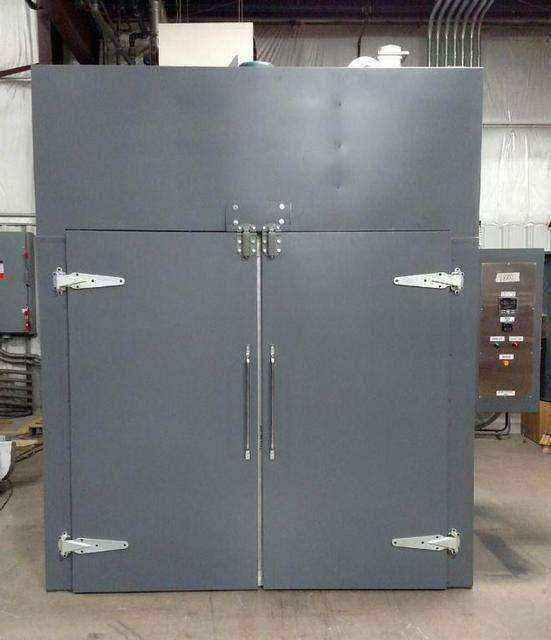

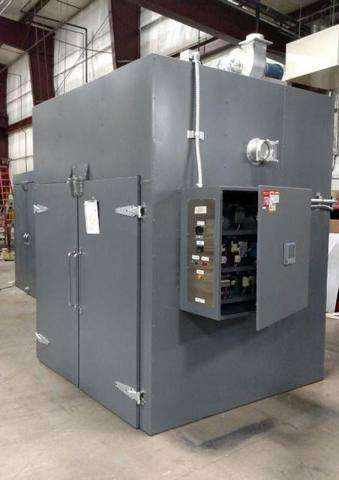

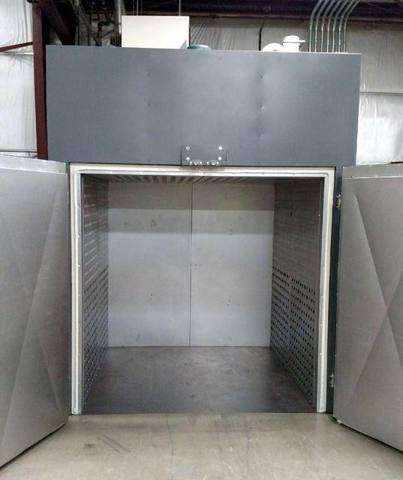

FB SERIES OVEN, WALK IN, GAS FIRED
New equipmentWalk-In Ovens
Size I.D.84"W x 84"L x 84"H
Max temp650 F
Electrics208,240 OR 480 VOLTS, KW, 3 PHASE
F.O.B.FACTORY LOCATION
Interested in item A3718?
Request a price quotation and photos, or call John Bouley directly. Your inspection is invited and suggested.
Finance this equipment with low monthly payments. Apply with Direct Capital →
Specifications
| Manufacturer | FB SERIES, GAS FIRED NEW OVEN |
|---|---|
| Type | OVEN, WALK IN, GAS FIRED |
| SIZE I.D. | 84"W x 84"L x 84"H |
| SIZE O.D. | 114"W x 100"L x 120"H |
| Model | FB-ST777HDG |
| Maximum Temp. | 650 F |
| Electrics | 208,240 OR 480 VOLTS, KW, 3 PHASE |
| Controls | SINGLE SET POINT ELECTRONIC TEMPERATURE CONTROL, DIGITAL HIGH LIMIT CONTROL AND BATCH TIMER (SHUTS HEAT OFF AT END OF TIMED CYCLE) MOUNTED IN A NEMA 1 AND UL RATED PANEL ON THE RIGHT SIDE OF OVEN. |

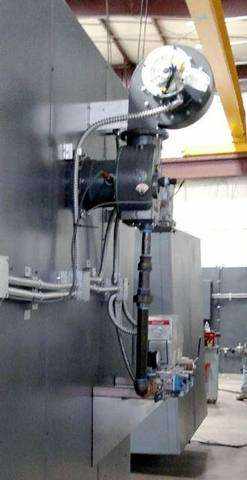

| General | DOUBLE DOOR OPENING WITH FM APPROVED SLAM LATCHES. HEAT IS SUPPLIED BY A MAXON 500,000 BTU/HR. BURNER FIRING INTO A TOP MOUNTED PLENUM. HEATED AIR IS CIRCULATED FROM BOTH SIDE WALLS TO THE ROOF BY 30" DIA 7000 CFM WITH 5 HP DIRECT DRIVE TEFEC MOTOR. OVEN HAS 4.5" THICK WALL WITH ALUMINIZED STEEL INTERIOR AND CARBON STEEL EXTERIOR PAINTED GRAY. EQUIPPED WITH A 600 CFM POWERED EXHAUST. OPTIONAL 3" INSULATED FLOOR WITH CART TRACKS WILL BE QUOTED UPON REQUEST. |
| F.O.B. | FACTORY LOCATION |
| Weight | APPROX. 5500 LBS. |
| Terms | 50% WITH PURCHASE ORDER, 50% 5 DAYS PRIOR TO SHIPPING. CANCELLATIONS WILL NOT BE AGREED TO EXCEPT ON TERMS THAT WILL INDEMNIFY US AGAINST ANY LOSS. |
Spec sheet: JB 04/22/2026
NOTICE: DISCLAIMER OF EXPRESS AND IMPLIED WARRANTIES: The information above is deemed reliable but not certified. The above consists of used goods and are sold "AS IS", without express warranties by Seller or implied warranties of any nature whatsoever, including but not limited to merchantability and/or fitness for a particular purpose. Any inspections of the goods made by Seller have not been made for the purpose of providing representations as to quality and safety. Due to the nature of the goods offered, Buyer is encouraged to make a thorough inspection prior to the time of transfer, and to consult the individual manufacturer and manufacturer's guides as to operating instructions for the goods.
